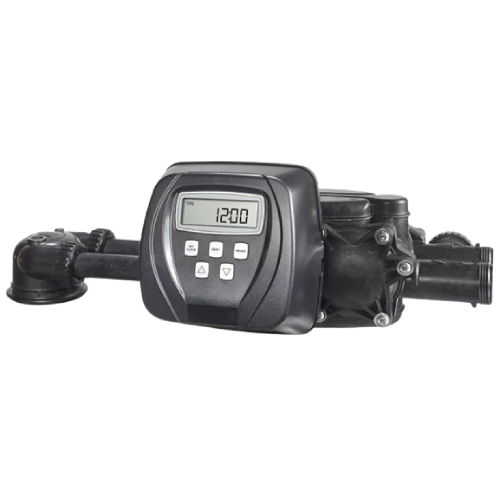

V1TT1CIDM WS1 CI Twin Clack control valve

Service at 15 psi drop – 28 gpm (includes meter and bypass)
Backwash at 25 psi drop – 15 gpm (includes bypass)

Tanks:
Softener – 6” – 21” diameter
Filter – 6″ – 16″ diameter

Working pressure 20 – 125 psi
Operating temperatures from 4°C to 43°C

Inlet/outlet 1” – 1.25” NPT
Assembly connections ¾” – 1.5” Sweat
¾” – 1.5” Solvent
¾” – 1” SharkBite
¾” – 1” John Guest

Valve material – Fiber Reinforced Composite
Cycles – up to 6
Regeneration – Downstream/Upstream

Counter:
Flow rate range – 0.25 – 27 gpm

Drain line connection – ¾” Male NPT Standard
1” Male NPT Optional

Brine Line Connection – 3⁄8” Brine QC Fitting
½” O.D. Poly Tube
Compression
